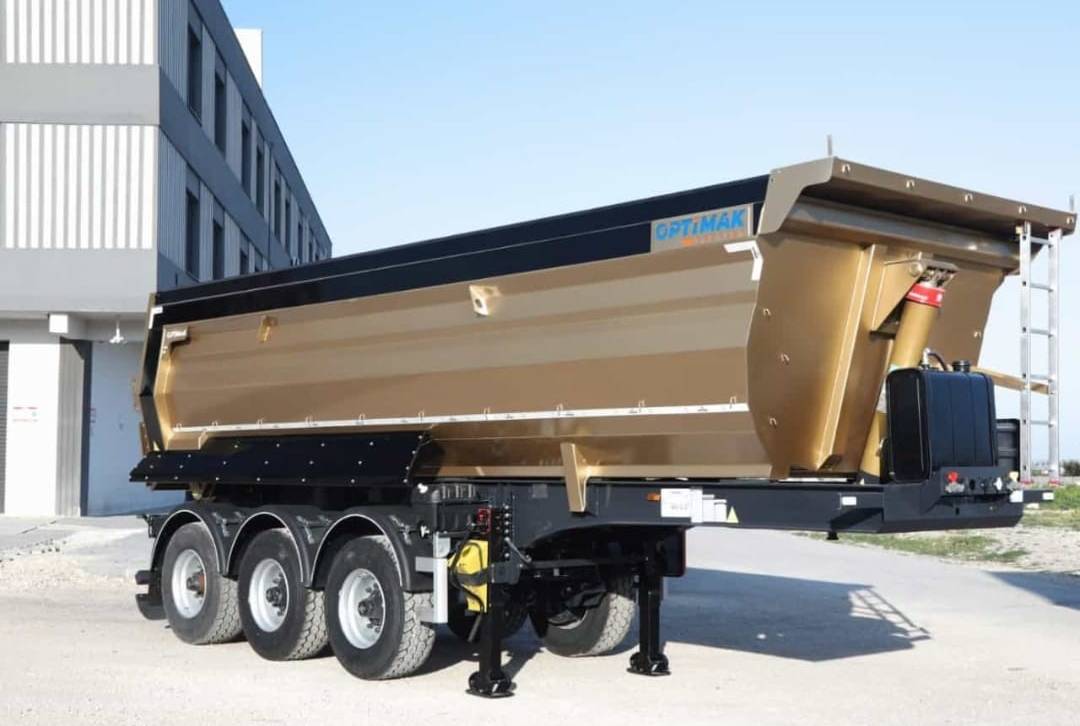

HALF PIPE TYPE TIPPER SEMI-TRAILER TECHNICAL SPECIFICATIONS:
|
1.1 |
Base / Side Walls |
HARDOX 450 and HARDOX 500 TUF high-wear-resistant steel. Production options range from 4/3 mm to 8/6 mm. |
|
1.2 |
Front Panel / Rear Cover: |
HARDOX 450 and HARDOX 500 TUF high-wear-resistant steel. |
|
1.3 |
Supports and Cross Members |
S700 MC - S355 JR High-strength steel. |
|
1.4 |
Body Longitudinal Carriers |
S700 MC - S355 JR High-strength steel. |
|
2.1 |
Chassis Platform |
Manufactured as I-section from high-strength S700 MC steel. |
|
2.2 |
Chassis Cross Members and Supports |
S700 MC - S355 JR High-strength steel. |
|
2.3 |
Landing Gear |
Speed-adjustable, with a dynamic load capacity of 24 tons. |
|
2.4 |
King Pin |
2” bolted King Pin compliant with ECE R55 Regulation. |
|
2.5 |
Axle Specifications |
Standard production includes:
Axle Brand Options: 9 or 12 Ton Capacity Turkish Brands: PIRLANTA (Relax) - ÖZKOÇ - SERTEL European Brands: BPW - SAF HOLLAND - VALX |
|
2.6 |
Tire - Wheel |
385/65/R22.5 tire / 11.75 x 22.5 Steel wheel |
|
2.7 |
Brake System |
WABCO or KNORR 2S/2M electro-pneumatic EBS brake system compliant with ECE R13 Regulation |
|
2.8 |
Electrical System |
Electrical and lighting system compliant with ECE R48 Regulation |
|
2.9 |
Rear Underrun Protection |
Folding type bumper compliant with ECE R58 Regulation. |
|
2.10 |
Lateral Protection |
Foldable type compliant with ECE R73 Regulation. |
|
2.11 |
Mudguards |
Plastic mudguards - Anti-Spray mudflap |
|
3.1 |
Tipping Cylinder |
175 - 5- 5550 C TYPE HİDROMAS BRAND |
|
3.2 |
Oil Tank |
HİDROMAS rectangular type oil tank with gauge. (Round type and other brand production options available) |
|
3.3 |
Hydraulic Oil |
ISO VG 32 – 46 - 68 |
|
3.4 |
Hydraulic Hoses |
R2 Steel high-pressure hoses |
|
3.5 |
PTO - EQUIPMENT RELATED TO PUMP AND TRUCK |
Not included in standard production, offered as optional
|
|
4.1 |
Standard Accessories |
Plastic or sheet metal toolbox (1), load gauge (1), wheel chock (1), spare tire carrier (1), fire extinguisher cabinet (without tube) (1), ladder (1) |
|
5.1 |
PAINT SPECIFICATIONS |
After surface cleaning with sandblasting, epoxy primer and acrylic topcoat are applied in the desired colors with appropriate film thickness. |
OPTIONAL FEATURES
|
|
|
|
HPT-700 |
HPT-730 |
HPT-760 |
HPT-810 |
|

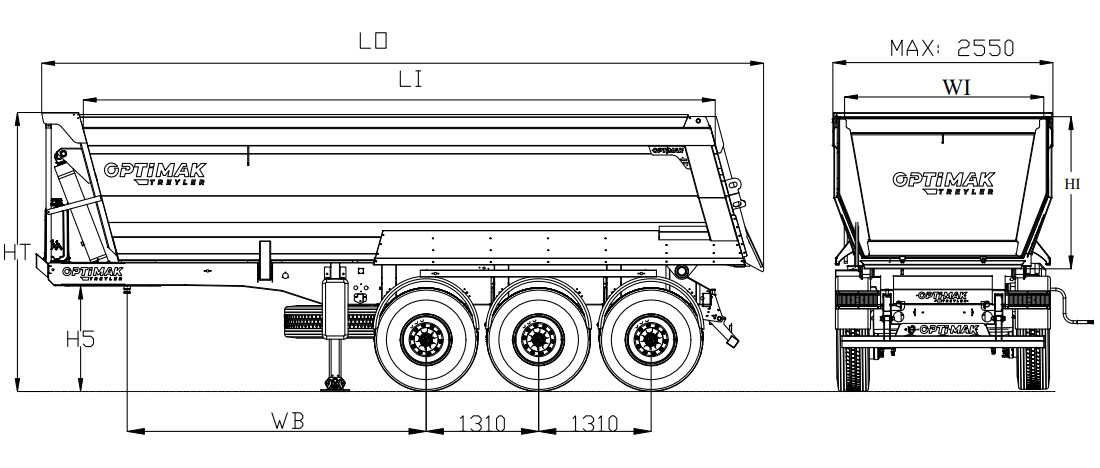

Inner Lenght (mm) - LI |
7.000 mm |
7.300 mm |
7.600 mm |
8.100 mm |
|
Inner Width (mm) - WI |
2.300 mm |
2.300 mm |
2.300 mm |
2.300 mm |
|
Inner Height (mm) - HI |
Min: 1.450 mm Max: 1.800 mm |
Min: 1.450 mm Max: 1.800 mm |
Min: 1.450 mm Max: 1.800 mm |
Min: 1.600 mm Max: 1.800 mm |
|
Volume (m3) |
18 – 20 – 22 m3 |
22 – 24 – 26 m3 |
26 – 28 – 29 m3 |
30 – 32 – 34 m3 |
|
Wheel Base (mm) - WB |
3.180 mm |
3.480 mm |
3.780 mm |
4.080 mm |
|
Fifth Wheel Height (mm) – H5 |
1.220 mm |
1.220 mm |
1.220 mm |
1.220 mm |
|
Total Height (mm) - HT |
Min: 3.050 mm Max: 3.400 mm |
Min: 3.050 mm Max: 3.400 mm |
Min: 3.050 mm Max: 3.400 mm |
Min: 3.250 mm Max: 3.450 m |
|
Total Lenght (mm) - LO |
8.150 mm |
8.450 mm |
8.750 mm |
9.400 mm |
|
Maximum Tilt Angle |
44o |
44o |
44o |
44o |
|
Dry Weight (kg) |
Min: 6.400 kg Max: 7.300 kg |
Min: 6.600 kg Max: 7.500 kg |
Min: 6.750 kg Max: 7.650 kg |
Min: 7.600 kg Max: 9.500 kg |
|
Permissible Total Weight (kg) |
40.000 kg |
40.000 kg |
40.000 kg |
40.000 kg |
|
Rated Load Capacity (kg) |
Min: 32.700 kg Max: 33.600 kg |
Min: 32.500 kg Max: 33.400 kg |
Min: 32.350 kg Max: 33.250 kg |
Min: 30.500 kg Max: 32.400 kg |
