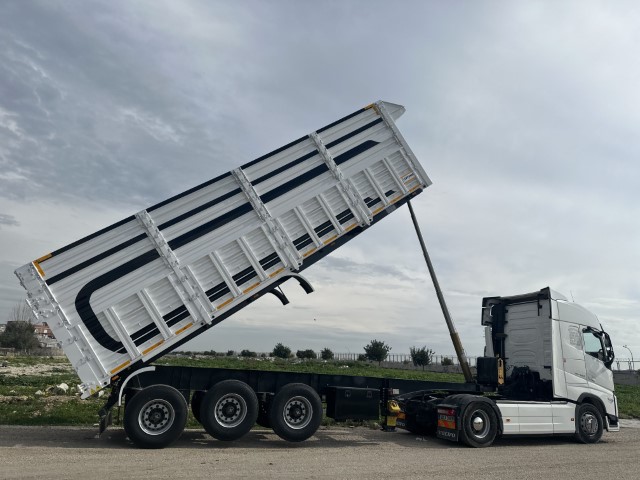

GRAIN CARRIER SEMI-TRAILER TECHNICAL SPECIFICATIONS:

1.1

Side Covers

1 meter cover with 45 cm x 2 addition covers

Total depth: 1.90 meters

Each sides consist double addition covers

Manufactured from 1 or 1.2 mm S700 CR Steel

1.2

Front Panel / Rear Cover:

Manufactured from 1.2 mm S700 CR Steel

1.3

Floor Sheet

HARDOX high abrasion resistant steel or S700 MC high strength steel.

1.4

Body Longitudinal Carriers and Cover Supports

S700 MC - S355 JR High-strength steel.

2.1

Chassis Platform

Manufactured as I-section from high-strength S700 MC steel.

2.2

Chassis Cross Members and Supports

S700 MC - S355 JR High-strength steel.

2.3

Landing Gear

Speed-adjustable, with a dynamic load capacity of 24 tons.

2.4

King Pin

2” bolted King Pin compliant with ECE R55 Regulation.

2.5

Axle Specifications

Standard production includes:

  • 12-ton drum brake axles
  • 70 mm single leaf springs
  • 30/30 emergency brake chambers with service brake chambers
  • 813 Type air springs
  • Single or dual axle lift options

Axle Brand Options: 9 or 12 Ton Capacity

Turkish Brands: PIRLANTA (Relax) - ÖZKOÇ - SERTEL

European Brands: BPW - SAF HOLLAND - VALX

2.6

Tire - Wheel

385/65/R22.5 tire / 11.75 x 22.5 Steel wheel

2.7

Brake System

WABCO or KNORR 2S/2M electro-pneumatic EBS brake system compliant with ECE R13 Regulation

2.8

Electrical System

Electrical and lighting system compliant with ECE R48 Regulation

2.9

Rear Underrun Protection

Folding type bumper compliant with ECE R58 Regulation.

2.10

Lateral Protection

Foldable type compliant with ECE R73 Regulation.

2.11

Mudguards

Plastic mudguards - Anti-Spray mudflap

3.1

Tipping Cylinder

175 - 5- 5550 C TYPE HİDROMAS BRAND

3.2

Yağ tankı

HİDROMAS rectangular type oil tank with gauge. (Round type and other brand production options available)

3.3

Hydraulic Oil

ISO VG 32 – 46 - 68

3.4

Hydraulic Hoses

R2 Steel high-pressure hoses

3.5

PTO - EQUIPMENT RELATED TO PUMP AND TRUCK

Not included in standard production, offered as optional

4.1

Standard Accessories

Plastic or sheet metal toolbox (1), load gauge (1), wheel chock (1), spare tire carrier (1), fire extinguisher cabinet (without tube) (1), ladder (1)

5.1

PAINT SPECIFICATIONS

After surface cleaning with sandblasting, epoxy primer and acrylic topcoat are applied in the desired colors with appropriate film thickness.

OPTIONAL FEATURES

  • Hydraulic arm rear cover
  • Aluminum Wheels
  • Tarpaulin Systems
  • Full electronic suspension (ECAS - I-LEVEL)

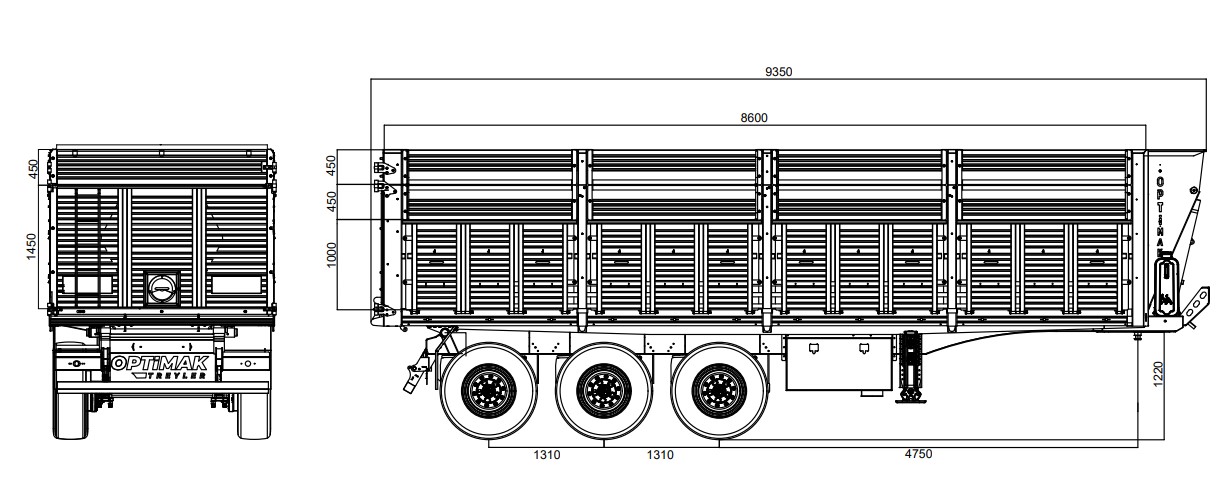

SDT-830

SDT-860

Inner Lenght (mm) - LI

8.300 mm

8.600 mm

Inner Width (mm) - WI

2.420 mm

2.420 mm

Inner Height (mm) - HI

Min: 1.800 mm

Max: 2.200 mm

Min: 1.800 mm

Max: 2.200 mm

Volume (m3)

33 – 37 – 39 m3

36 – 39 – 42 m3

Wheel Base (mm) - WB

4.500 mm

4750 mm

Fifth Wheel Height (mm) – H5

1.220 mm

1.220 mm

Total Height (mm) - HT

Min: 3.250 mm

Max: 3.700 m

Min: 3.250 mm

Max: 3.700 m

Total Lenght (mm) - LO

9.000 mm

9.600 mm

Maximum Tilt Angle

44o

44o

Dry Weight (kg)

Min: 5.750 kg

Max: 7.000 kg

Min: 5.750 kg

Max: 7.000 kg

Permissible Total Weight (kg)

40.000 kg

40.000 kg

Rated Load Capacity (kg)

Min: 30.500 kg

Max: 33.500 kg

Min: 30.500 kg

Max: 33.500 kg
